How to Pump Air Mattress With Foot Pump: Practical Guide for 2026

Arriving at an unpowered campsite after dark often leaves campers struggling with dead battery packs or noisy electric inflators that echo across quiet tent loops. Manual foot pumping provides a silent, self-contained alternative that eliminates reliance on vehicle auxiliary sockets or household wall outlets. Learning how to pump air mattress with foot pump mechanisms allows outdoor sleepers to achieve firm, supportive sleeping surfaces in just a few minutes without carrying heavy motorized gear. Many campers discover that mastering this physical technique makes remote backcountry travel and festival camping far more predictable, especially when pairing gear with reliable camping airbed inflation techniques.

Foot-operated air systems generally divide into integrated internal foam bellows and standalone external bellows pumps equipped with flexible delivery hoses. Both designs rely on high-volume low-pressure mechanics to transfer ambient air into the mattress chambers while protecting internal welded vinyl seams from excessive pressure. Understanding the distinction between these systems helps you position your feet correctly, maintain a steady pumping cadence, and prevent backpressure leakage during late-night setups. When exploring options for blowing up an airbed outdoors, having a manual foot system ready ensures you never spend the night sleeping on hard, cold ground.

Mastering Foot Pump Operation for Inflatable Mattresses

Foot-operated inflation offers one of the most dependable ways to prepare camping mats and inflatable mattresses without electrical cords or disposable batteries. Understanding the proper mechanical action transforms what could be a tiring chore into a brisk, two-minute setup. The process hinges on sealing an intake check valve during compression and releasing it completely during expansion to draw in fresh air. Once you understand the internal mechanics of your specific pump type, filling your sleeping surface becomes smooth, predictable, and remarkably quick.

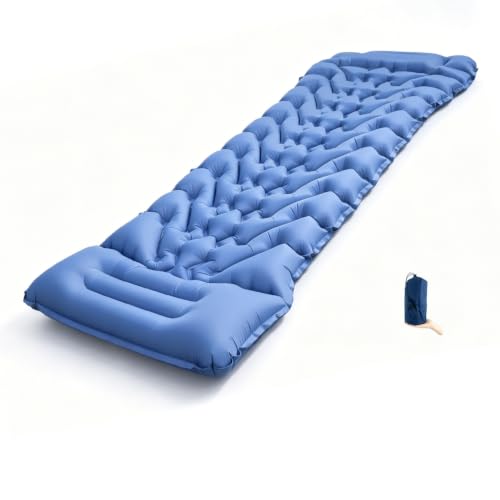

Modern outdoor bedding utilizes two primary styles of foot inflation systems. Inflatable pads like the Dragonfly Clip sleeping pad and Mikimi double pad feature built-in sponge bellows embedded directly into the mattress corner. In contrast, traditional full-height airbeds often rely on external plastic accordion bellows, such as the Leadigol foot pump, which connect via flexible ribbed hoses. Each style requires a slightly different foot motion, valve setup, and pacing to maximize airflow and reach an ideal firmness.

Integrated Sponge Pumps vs External Accordion Bellows

Integrated foot pumps utilize an internal open-cell polyurethane foam block situated within an isolated air chamber at the foot or corner of the mattress. When you press down on the mattress surface, the compressed foam forces trapped air through a one-way internal check valve into the main mattress body. As you lift your foot, the resilient foam expands back to its original shape, creating a vacuum that draws fresh air from the outside atmosphere through an intake aperture. This self-contained configuration saves pack weight and prevents lost pump adapters, which is why lightweight pads like the Jauarta camping mattress adopt this mechanism.

External accordion bellows pumps operate as separate mechanical accessories made from molded thermoplastic shells with hinged or corrugated bodies. Stepping down on the foot pedal compresses a heavy internal spring and collapses the bellows, driving a large volume of air through an exit port and attached delivery hose. Releasing foot pressure allows the spring to push the bellows upward, pulling outside air through a dedicated intake flap. Units like the Leadigol portable plastic pump deliver universal utility because their flexible hoses accommodate multiple interchangeable stepped friction nozzles.

Choosing between these two approaches usually depends on mattress volume and personal camping style. Integrated pads are ideal for solo hikers, backpackers, and festival attendees who prioritize compact pack sizes and minimal gear bulk. External foot bellows better serve high-capacity camping airbeds, double-height guest mattresses, and recreational pool inflatables that feature standard external Boston or pinch valves. Both designs generate low-pressure, high-volume airflow that prevents internal baffle damage while keeping inflation effort manageable.

Step-by-Step Technique for Built-In Foot Pump Mattresses

Before pumping an integrated pad, clear your tent floor or ground tarp of sharp pebbles, twigs, and rough debris that could puncture the bottom fabric. Unroll the pad completely and lay it out flat with the textured sleeping surface facing upward. Inspect the perimeter to locate the primary deflation valve, which is usually positioned near the integrated pillow or at the opposite end of the foot chamber. Ensure this exhaust plug is firmly pressed into its seat and sealed tight, because leaving it loose prevents the mattress from holding air.

Next, locate the dedicated air intake port on the built-in foot pump zone, which typically sits within a round circle or foot graphic. Open the rubber or silicone protective cap covering this intake hole, exposing the internal one-way flapper valve. Place the ball of your foot or bare heel directly over the opening so that your footwear completely covers the aperture. Press down firmly and deliberately toward the ground, compressing the internal foam core to force the air through the internal chamber into the sleep cells.

The most critical step in operating an integrated pump happens during the upward recovery stroke. You must lift your foot slightly off the fabric opening so ambient air can rush back in and re-expand the foam chamber. If you keep your foot glued to the hole while lifting your leg, the chamber stays collapsed in a vacuum and cannot intake new air. Establish a steady rhythm of stepping down firmly for one second, then lifting your foot clear for one second to allow full mechanical rebound.

Most single-width camping pads require between 60 and 90 continuous compression cycles to reach full firmness. Larger family-sized double pads, such as the Generic 78 by 53 inch model, generally take around two to three minutes of rhythmic stamping. As the internal chambers fill, the mattress stiffens and offers increasing resistance beneath your foot. Once the pad achieves your preferred firmness, immediately push the rubber protective stopper back into the intake port to prevent accidental deflation.

Operating External Bellows Pumps on Full-Size Airbeds

Operating a standalone external foot pump begins with identifying the correct valve connection on your air mattress. Traditional airbeds typically feature either a narrow rubber pinch valve or a wide-mouth threaded Boston valve with an internal flapper. Examine the multi-nozzle tree that accompanied your bellows pump to select the adapter that matches the inner diameter of your mattress valve. A secure friction fit is essential, as loose connections let pressurized air escape around the nozzle collar during active compression strokes.

Attach the corrugated flexible hose to the exhaust port on the foot bellows body rather than the intake suction port. Most plastic bellows feature two distinct color-coded or labeled ports, where one expels air and the other draws air in for vacuum deflation. Insert your chosen nozzle adapter firmly into the mattress valve, ensuring the nozzle tip pushes open any internal check flapper. Place the pump base on level, solid ground so it remains stable while you apply repetitive downward body weight.

Stand with one foot anchored beside the pump and position your active foot squarely across the ribbed pedal surface. Depress the bellows fully toward the base plate using your body weight rather than raw leg muscle to conserve stamina. Allow the internal spring to return the pedal completely to its raised position before initiating the next stroke. Compressing the bellows in short, choppy half-strokes reduces air transfer efficiency and increases the total time required to fill large airbeds.

Keep one hand resting lightly near the mattress valve connection to monitor backpressure as the mattress nears full capacity. When airbeds approach sleep-ready tension, the internal air pressure pushes back against the pump nozzle, which can cause loose friction adapters to slip loose. Once the mattress reaches the desired firmness, swiftly disconnect the nozzle and close the primary valve cap. External foot pumps excel at topping off mattresses because they allow fine control over firmness without the risk of electrical motor burnout.

Pressure Management and Protecting Internal Mattress Baffles

Air mattresses and inflatable camping pads are engineered specifically as high-volume, low-pressure structures that operate safely between 0.4 and 1.2 pounds per square inch. Unlike bicycle tires or automotive tires that require dense, high-pressure air, airbeds rely on large air displacement to create a stable cushion. Foot pumps naturally align with this engineering profile by moving substantial volume with each stroke at moderate working pressures. This low-pressure delivery eliminates the catastrophic seam blowouts and torn internal coil baffles often caused by unregulated garage air compressors.

Even with manual foot pumps, over-inflating an airbed can strain welded polymer seams and weaken internal vinyl I-beams. When testing mattress tension, press your palm into the center of the sleeping surface while the bed is resting on the ground. A properly inflated mattress should depress roughly one to two inches under firm hand pressure without letting your knuckles touch the floor. If the surface feels rigid like a drumhead with zero deflection, crack open the exhaust valve briefly to bleed off excess pressure.

Remember that environmental temperature directly impacts air pressure inside sealed mattress chambers. Pumping a mattress during a warm afternoon causes the internal air to expand, which will naturally contract and soften as evening temperatures plunge in a tent. Avoid over-pumping during the day to compensate for anticipated night cooling, as excessive heat can stretch TPU and PVC materials beyond their elastic limits. Instead, perform a quick 10-second foot pump top-off right before climbing into your sleeping bag for optimal night support.

Troubleshooting Ineffective Foot Pumping and Slow Inflation

When a built-in foot pump fails to fill a camping pad after several minutes of vigorous stamping, improper foot positioning is almost always the cause. If the sole of your shoe does not completely cover the intake aperture on the downward stroke, air merely shoots back out into the open tent rather than into the bed. Conversely, failing to lift your foot high enough on the upward stroke prevents the internal foam core from drawing in fresh air. Adjusting your footing so that you create a tight seal going down and provide full clearance coming up quickly restores rapid airflow.

Unintended air loss through open exhaust valves represents another frequent obstacle during campsite setup. Inspect the secondary deflation caps to ensure that the inner rubber sealing gasket is seated squarely without grit or fold lines obstructing the rim. If your mattress fails to maintain pressure despite verified valve seals, you may need a reliable technique for finding leaks in camping airbeds before your trip continues. Microscopic pinholes along edge welds or valve weld seams allow pumped air to escape just as fast as you force it in.

For external foot bellows, loose hose fittings and kinked delivery tubes can severely throttle air delivery. Inspect the ribbed hose where it threads onto the bellows body to confirm that the collar is screwed down tight against the O-ring gasket. Straighten any sharp bends or crimps along the hose length that could restrict the low-pressure airflow. If the pump pedal feels stiff and refuses to depress smoothly, inspect the intake check flap on the underside of the bellows to ensure leaves or dirt have not jammed the air inlet.

Rapid Deflation and Space-Saving Pack-Down Methods

Deflating a foot-pump mattress requires completely opening the dedicated high-flow exhaust ports rather than pushing air backward through the pumping mechanism. Integrated sleeping mats feature large dump valves that immediately release the majority of trapped air as soon as the outer plug is pulled. For standalone airbeds inflated with external pumps, unscrewing the primary Boston valve collar exposes an unrestricted aperture that dumps interior air within seconds. Never attempt to force air out through the small intake flapper of a built-in foot pump, as this strains the check valve membrane.

To evacuate remaining residual air for compact storage, start rolling the mattress from the end furthest away from the open deflation port. Kneel on the folded sections as you advance along the length, using your body weight to drive air pockets toward the exit valve. If your external bellows pump features a secondary vacuum intake port, you can connect the hose to that port and pump with your foot to vacuum-deflate the airbed completely flat. This active evacuation removes stubborn air pockets that otherwise make folding bulky mattresses into factory carry bags frustrating.

Once the mattress is thoroughly flattened, fold it lengthwise into thirds or quarters according to the manufacturer folding guidelines. Roll the compacted strip tightly from the base toward the valve, allowing any final whispers of air to escape before popping the valve cap shut. Securing the rolled pad with elastic straps or an included cinch cord keeps the bundle tight and manageable. A properly deflated pad should easily slip back into its nylon storage sack without forcing seams or stretching carry bag zippers.

Care, Moisture Prevention, and Field Maintenance

Maintaining your foot pump system ensures consistent reliability across seasons of outdoor camping and travel. Integrated sponge chambers are especially sensitive to internal moisture accumulation, which can degrade the polyurethane foam over time. Unlike mouth-inflated sleeping pads that accumulate breath condensation, foot pumps draw ambient atmospheric air, significantly reducing mildew risk. However, using your pump in damp tent vestibules or dewy grass can still introduce ambient moisture, making occasional thorough drying in an open room essential.

Inspect the outer fabric and welded seams regularly for signs of abrasion, especially if you frequently camp on rocky ground. Small thorns or sharp ground debris can cause micro-punctures near the foot chamber that compromise the pump compression stroke. If you encounter fabric tears or minor seam splits in remote areas, practical methods for repairing air mattress punctures using polyurethane glue and TPU patches will restore full airtight integrity. Keep a compact patch kit tucked inside your mattress stuff sack so field repairs can be handled immediately.

For external plastic bellows pumps, protect the flexible hose from getting crushed or stepped on during chaotic camp pack-downs. Store the hose loosely coiled rather than sharply kinked to prevent micro-cracks along the ribbed plastic channels. Wipe down the plastic pedal plates and check valves with a damp microfiber cloth after dusty desert or beach outings to prevent grit from scouring valve seats. Storing your gear in a temperature-controlled closet prevents extreme attic heat from degrading rubber gaskets and TPU coatings between camping adventures.

Mastering foot-powered mattress inflation delivers dependable comfort and self-reliance wherever you choose to sleep. By using your body weight efficiently, maintaining an airtight downstroke seal, and allowing full rebound between cycles, you can set up camp quickly without relying on electrical infrastructure. Taking a few moments to inspect your valves, control internal pressure, and clear ground debris guarantees a restful, well-supported night under the stars. Keep these practical mechanics in mind on your next journey, and you will enjoy hassle-free setup every time you unroll your gear.
